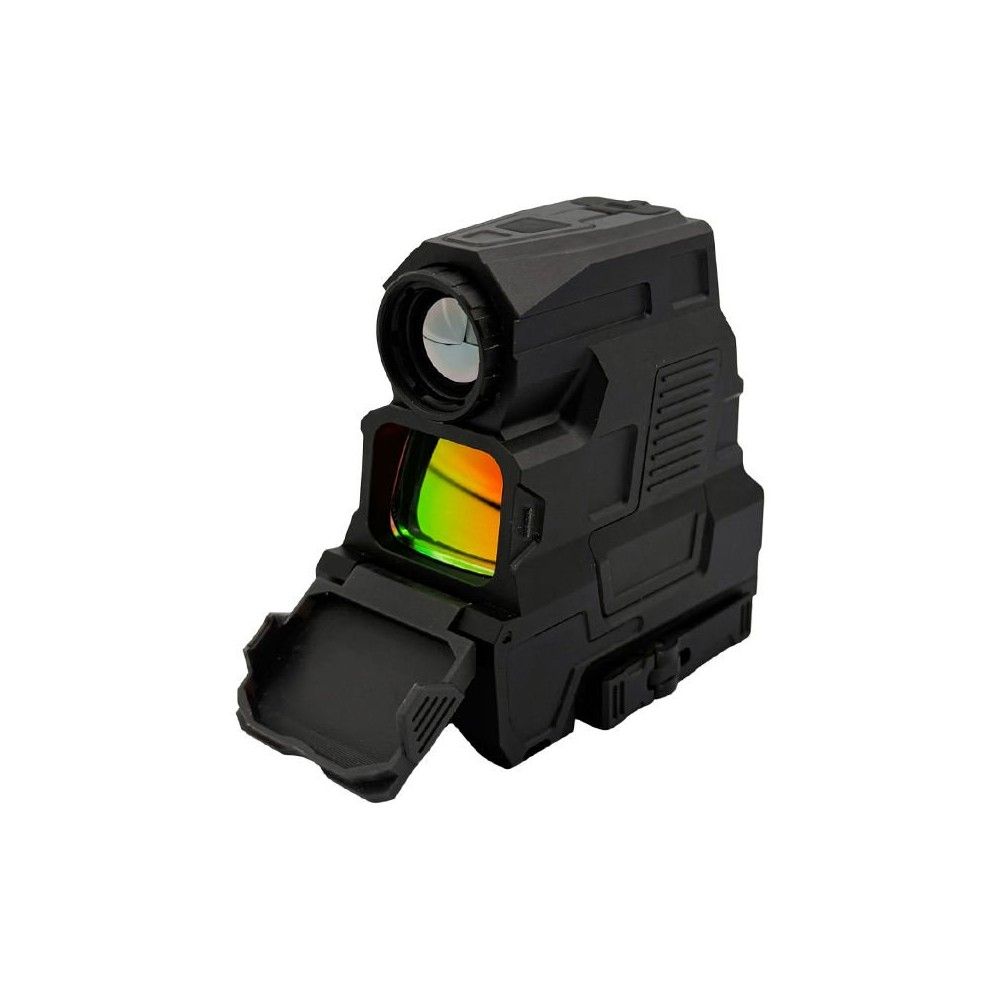

SpecPrecision Red Dot Thermal Fusion Sight

The Precision Red Dot Thermal Fusion Sight is a compact 1x day-and-night optic designed for fast target acquisition in dynamic environments. Built around a true 1x optical system, it supports rapid two-eyes-open aiming with a wide field of view, while the thermal fusion function helps highlight heat signatures for faster target detection in low-light and visually complex conditions. Its 34mm × 25mm effective viewing window further improves sight picture clarity and close-range aiming speed.

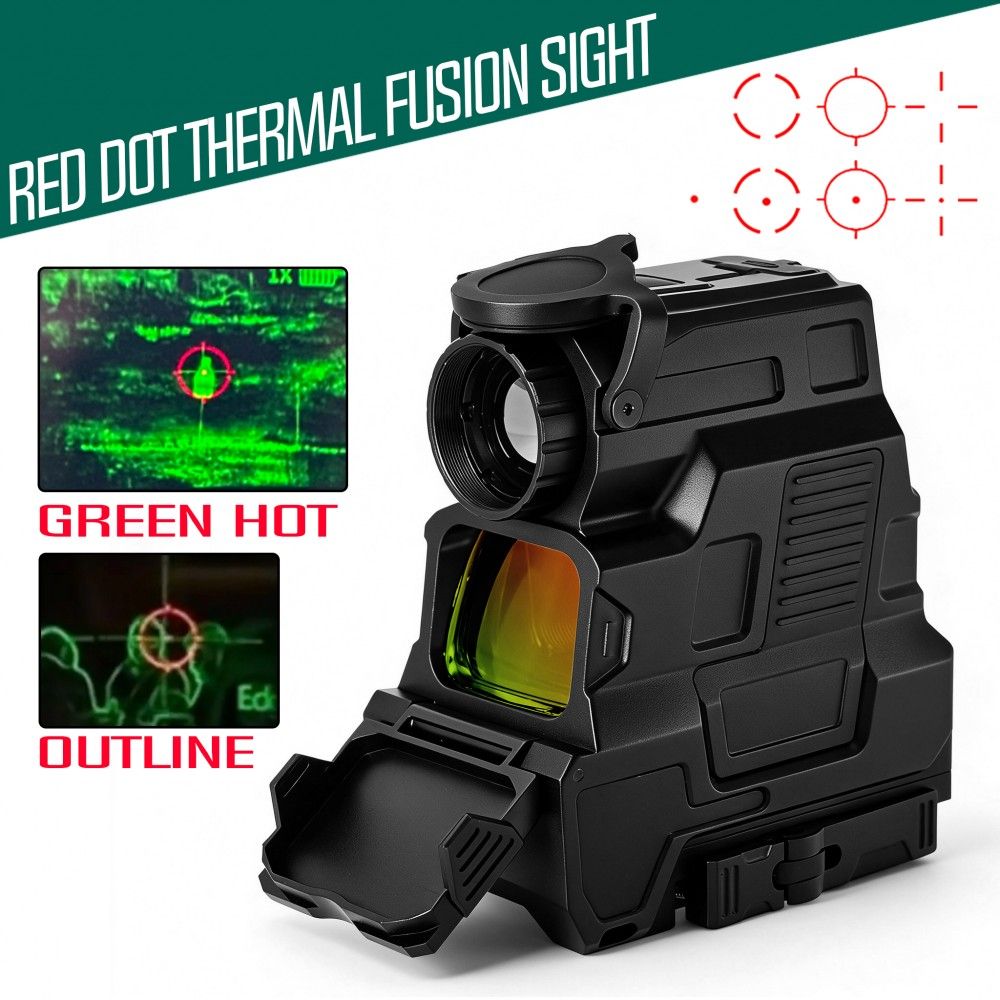

This optic combines fast red dot performance with thermal-assisted observation. It offers multiple reticle options, including red dot, red circle, and dot-circle, together with Black Hot, White Hot, and Outline thermal display modes. The thermal core uses an uncooled VOx detector with 256 × 192 resolution and 12μm pixel pitch, paired with a 1024 × 768 OLED display for clear image presentation. It also supports 1x / 3x / 5x infrared magnification adjustment and includes a Type-C port for data and video transmission to external display devices.

Built for durability and field reliability, the housing is made from CNC-machined 7075 aviation-grade aluminum with a black anodized finish for increased strength and wear resistance. The sight features 0.5 MOA click adjustment precision, ±40 MOA windage and elevation adjustment range, and a Picatinny interface with a quick-detach lever design for easier installation and removal. Powered by a CR123A battery, it delivers up to 100,000 hours of continuous runtime in single red dot mode at medium brightness, while fusion mode provides up to 4 hours of operation. With IP67 waterproof protection, compact dimensions of ≤81mm × 48mm × 59mm, and a weight of 450g, this optic is built to deliver dependable day-and-night performance in demanding outdoor use.

Key Features

• True 1x optical system for fast two-eyes-open aiming
• Thermal fusion capability for day and night use
• Multiple reticle patterns: dot / circle / dot-circle
• Thermal display modes: Black Hot / White Hot / Outline
• Uncooled VOx thermal sensor with 256 × 192 resolution
• 1024 × 768 OLED display for clear image output
• 1x / 3x / 5x infrared magnification adjustment
• Type-C data and video output to external display devices
• CNC-machined 7075 aluminum body with black anodized finish
• Quick-detach Picatinny mount for convenient installation and removal
• 0.5 MOA click adjustment with ±40 MOA range
• IP67 waterproof construction for rugged field use

Specifications

Optical Performance

• Magnification: 1X
• Effective Window Size: 34mm × 25mm
• Reticle Type: Red Dot / Red Circle / Dot-Circle
• Dot Size: ≤3 MOA
• Parallax: ≤2 MOA

Electrical Performance

• Battery Type: CR123A
• Runtime: ≥100,000 hours (single red dot, medium brightness)
• Fusion Mode Runtime: 4 hours
• Brightness Settings: 9 daytime / 2 night vision levels (red dot mode)
• Real-Time Battery Indicator: Yes

Thermal System

• Detector Type: Uncooled VOx
• Detector Resolution: 256 × 192
• Pixel Pitch: 12μm
• Display Type: OLED
• Display Resolution: 1024 × 768
• Display Modes: Black Hot / White Hot / Outline
• Infrared Magnification: 1x / 3x / 5x

Mechanical Data

• Material: 7075 aviation-grade aluminum
• Manufacturing: CNC machined
• Finish: Black anodized
• Adjustment Range: ±40 MOA (windage and elevation)
• Click Value: 0.5 MOA
• Mount Interface: Picatinny
• Mount Type: Quick-detach lever design
• Dimensions: ≤81mm × 48mm × 59mm
• Sight Baseline: 38mm
• Weight: 450g

Environmental Data

• Operating Temperature: -40°C to +65°C
• Storage Temperature: -45°C to +70°C
• Waterproof Rating: IP67
