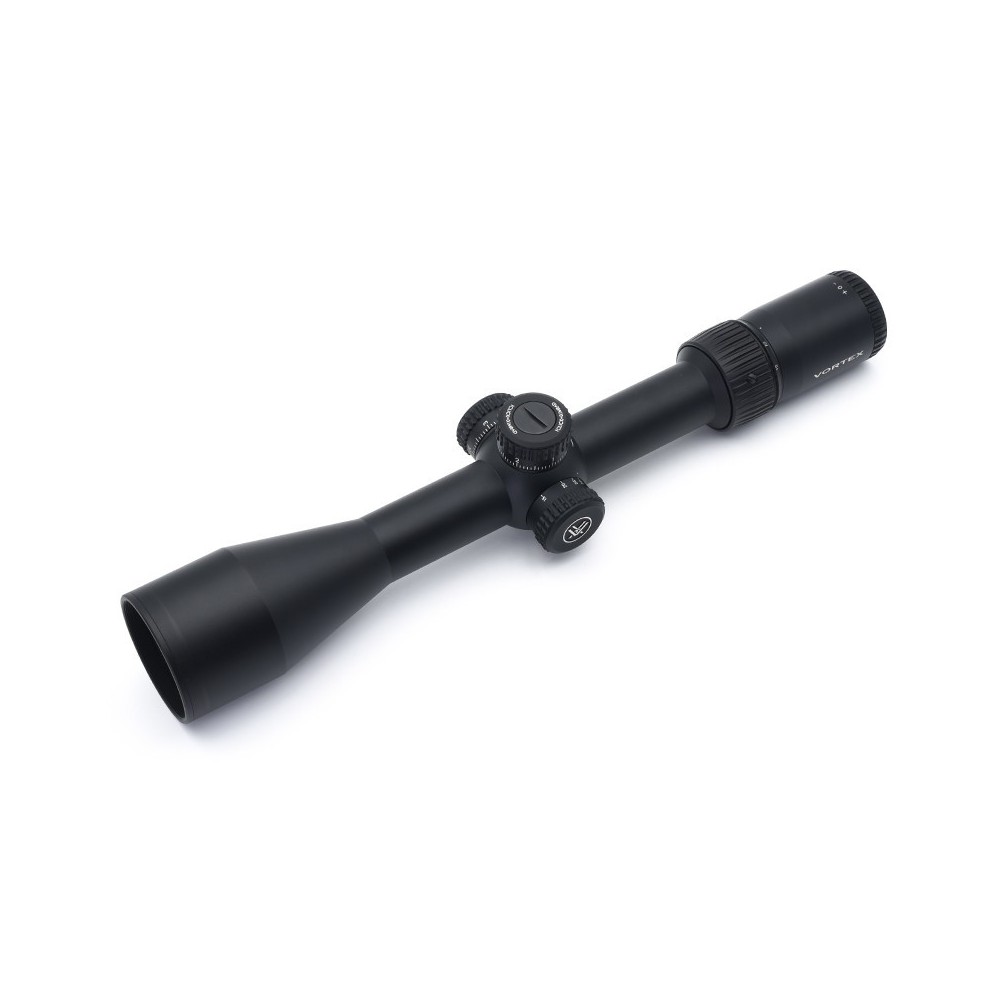

Original Diamondback Tactical 6-24x50 FFP Riflescope – EBR-2C MOA Reticle, 30mm Tube

6-24x50 FFP Tactical Riflescope

The 6-24x50 FFP Tactical Riflescope is designed for users who need a versatile optic for medium- to long-range target shooting, precision training and detailed observation. It combines a broad 6-24x magnification range, a 50mm objective lens, a first focal plane reticle, exposed tactical turrets and side parallax adjustment in a durable 30mm tube design.

At 6x magnification, the riflescope provides a wider field of view for locating and observing targets. Increasing magnification up to 24x gives the user a more detailed view of smaller aiming points at extended distances.

First Focal Plane Reticle

The reticle is positioned in the first focal plane. As magnification changes, the reticle changes size together with the target image. This keeps the reticle markings proportional throughout the complete 6-24x magnification range.

Because the reticle subtensions remain consistent, the MOA markings can be used for elevation holdover, wind correction and target measurement at any magnification setting.

EBR-2C MOA Reticle

The EBR-2C MOA reticle provides structured elevation and windage reference marks. These markings help compensate for bullet drop, wind movement and changing target distance.

The reticle can be used together with turret dialing or as a holdover system, making it practical for targets at different distances and for fast corrections without adjusting the turrets before every shot.

6-24x Variable Magnification

• 6x magnification: Wider field of view for target acquisition and medium-range observation.
• 12x to 18x magnification: Balanced magnification for general precision shooting.
• 24x magnification: Detailed target view for smaller aiming points at extended distances.

50mm Objective Lens

The 50mm objective lens helps collect available light and supports a bright, detailed sight picture. Multi-coated optical surfaces help reduce reflections and improve image contrast under changing outdoor light conditions.

Exposed Tactical Turrets

The exposed elevation and windage turrets provide direct access to sight adjustments. Each click equals 1/4 MOA, allowing fine and controlled corrections during zeroing and long-range adjustment.

• 1/4 MOA adjustment per click
• 15 MOA adjustment per turret rotation
• Approximately 65 MOA elevation adjustment
• Approximately 65 MOA windage adjustment

Side Parallax Adjustment

The side focus control adjusts parallax from approximately 10 yards to infinity. Correct parallax adjustment helps reduce apparent reticle movement when the eye is not perfectly centered behind the optic.

Comfortable Eye Relief

The riflescope provides approximately 3.9 inches of eye relief. Proper eye relief supports a complete sight picture and helps reduce the risk of contact under recoil.

30mm Main Tube

The 30mm main tube is compatible with a wide range of scope rings and one-piece tactical mounts. A compatible 30mm mounting system is required.

Key Features

• 6-24x magnification: Suitable for medium- and long-range applications.
• 50mm objective lens: Supports a bright and detailed image.
• First focal plane design: Reticle measurements remain proportional at every magnification.
• EBR-2C MOA reticle: Provides elevation and windage reference marks.
• Exposed tactical turrets: Allows direct access to adjustments.
• 1/4 MOA clicks: Supports fine zeroing and ballistic corrections.
• Side parallax adjustment: Adjustable from 10 yards to infinity.
• 30mm main tube: Compatible with common 30mm rings and scope mounts.
• Multi-coated optics: Helps improve light transmission and image contrast.
• Fast-focus eyepiece: Allows reticle focus to be adjusted for individual eyesight.

Technical Specifications

Recommended Applications

• Long-range target shooting
• Precision training
• Benchrest shooting
• MOA correction practice
• Medium- to long-range observation
• Recreational shooting
• Airsoft and training configurations, where legally permitted

Frequently Asked Questions

Is this a first focal plane riflescope?

Yes. The reticle is located in the first focal plane, so its MOA measurements remain proportional throughout the complete 6-24x magnification range.

What is the advantage of a first focal plane reticle?

A first focal plane reticle allows the user to apply elevation holdover, wind correction and target measurement at any magnification setting.

What size scope rings are required?

This riflescope uses a 30mm main tube and requires 30mm scope rings or a compatible 30mm one-piece mount.

Is the EBR-2C MOA reticle suitable for long-range shooting?

Yes. The reticle includes elevation and windage reference marks that support measured corrections and holdovers at different distances.

How much adjustment does each click provide?

Each elevation or windage click provides 1/4 MOA of adjustment. At 100 yards, 1/4 MOA is approximately 0.26 inches.

Does the scope have parallax adjustment?

Yes. The side parallax adjustment can be set from approximately 10 yards to infinity.

Is a scope mount included?

A scope mount is not included unless specifically listed in the selected package option. A compatible 30mm mounting system may need to be purchased separately.

Can this scope be used for extended-range shooting?

Yes. Its 6-24x magnification, first focal plane reticle, exposed turrets and side parallax adjustment make it suitable for medium- and long-range target shooting. Actual performance depends on the platform, mounting system, environmental conditions and user experience.

Mounting Recommendations

Use a quality 30mm mounting system and follow the mount manufacturer's torque recommendations. Before final tightening, check eye relief, reticle alignment and objective lens clearance.

After installation, establish a reliable zero and confirm turret tracking before using calculated elevation or windage corrections.
