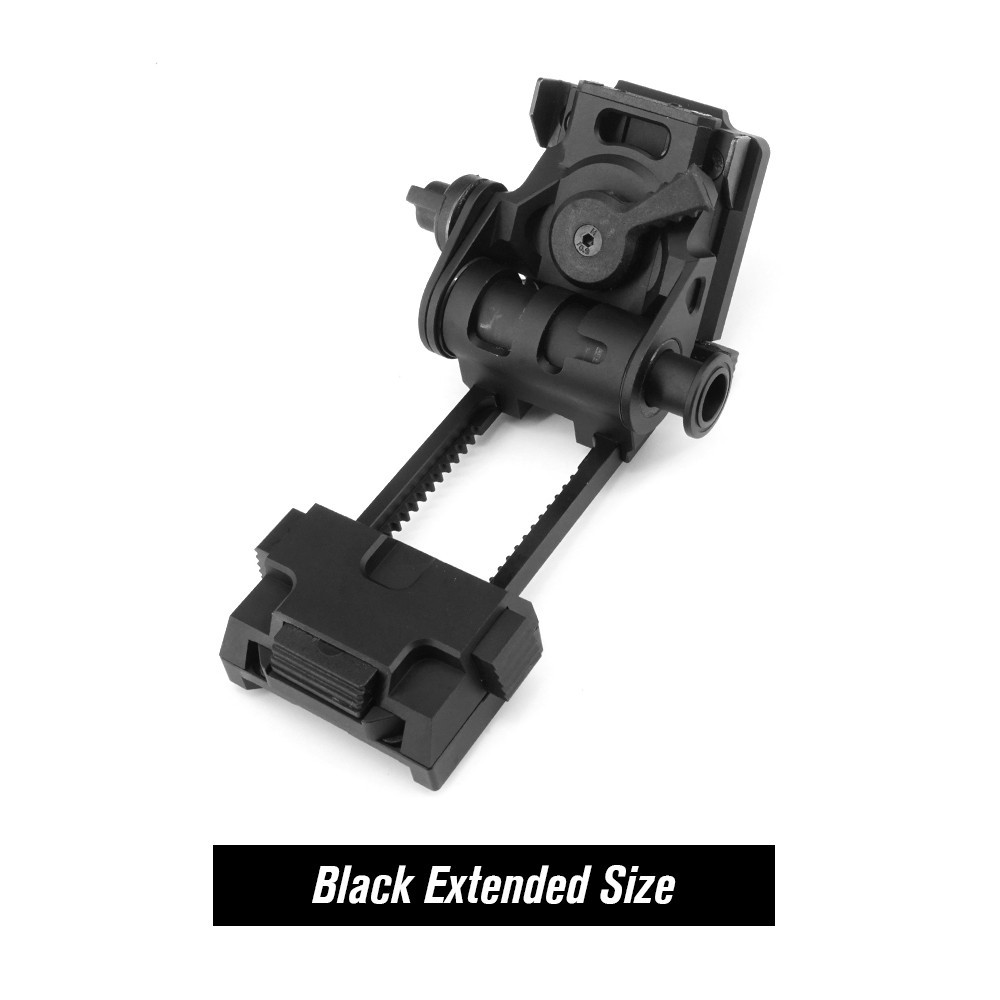

The LWNVM A4 offers an extremely low profile when flipped up, with a breakaway feature and a dovetail interface. Its extended version provides a longer adjustment range and increased dimensions to support larger NVGs or tactical gear.
The LWNVM (Light Weight Night Vision Mount) is designed as a close replica of the Wilcox G24 night vision mounts, incorporating additional lightening cuts like the G69 but maintaining the breakaway feature of the L4 series.
The LWNVM offers precise positioning with three axes of adjustment: fore/aft, up/down, and tilt. This mount features a dovetail interface, making it compatible with standard helmet shrouds. It is lightweight at 137g and made from high-grade aluminum.
The LWNVM’s low-profile design ensures it sits close to the helmet when stowed, minimizing the perceived weight of the entire night vision setup. Its ergonomic design enables one-handed operation for stowage, deployment, and adjustments in all three axes.
Additionally, the safety breakaway feature allows the mount to detach from the helmet shroud under excessive pressure, preventing snags on parachute cords or other objects and enhancing safety during jumps and runs. Compatible with any night vision device using a standard dovetail interface.
NVG COMPATIBILITY
DTNVS
PVS-31
Monoculars used with Falconclaw J-Arm
Other systems that have an dovetail interface
Capability
Maintains a very low profile on the helmet
Ergonomic adjustments allow for one handed operation
Breakaway feature reduces the risk of neck injury
Dovetail shoe interface securely locks NVG’s into place
Fore/Aft Travel：1.10”
Height Adjustment：.90″
Dimensions：89x66x98mm
Weight：137g
Reference: SPC-1095-TAN
Brand: SPECPRECISION
